Stainless Steel Honeycomb Core
Description

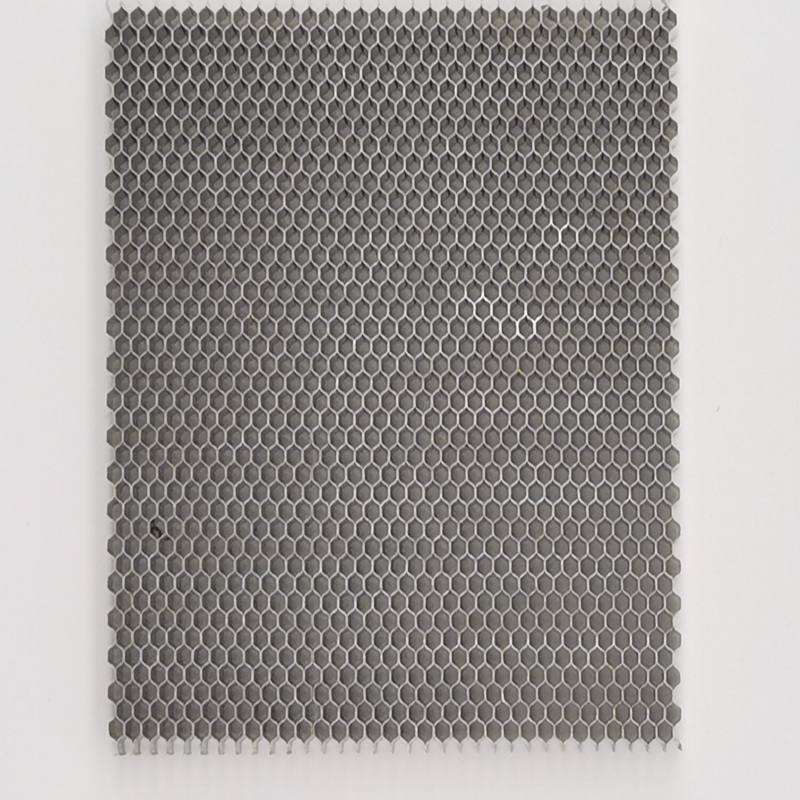

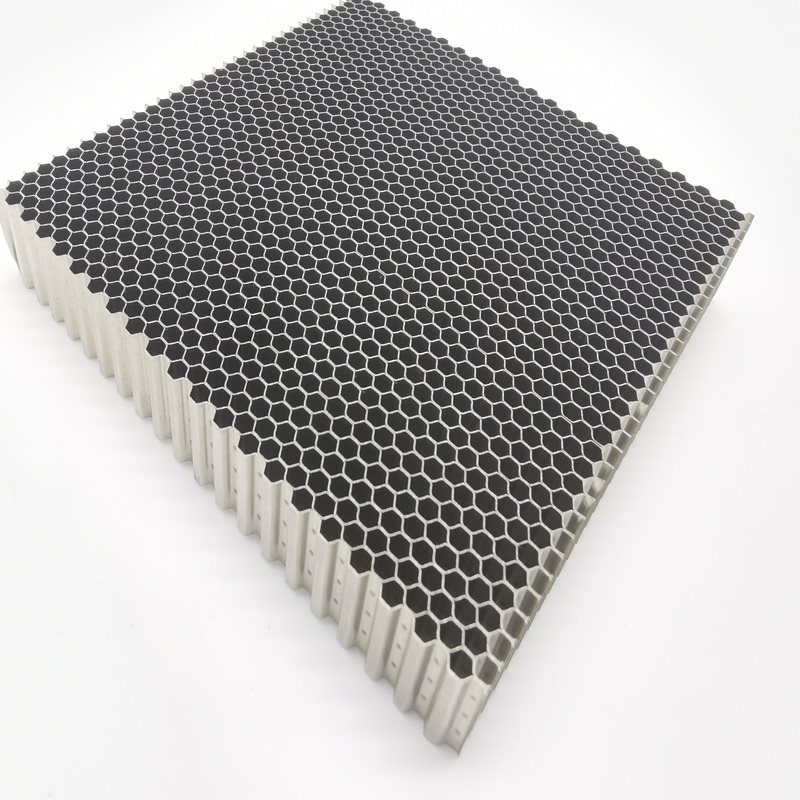

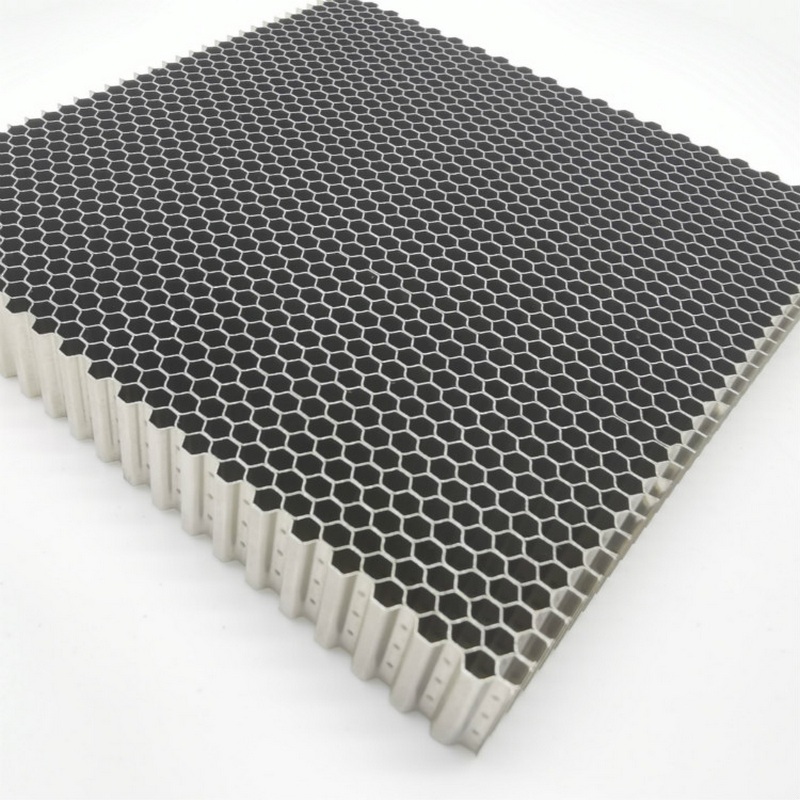

Aluminum Honeycomb Core is a lightweight and high-strength hexagonal honeycomb structural material made of high-quality aluminum foil through the process of laminating, expanding and shaping. Its unique geometric structure ensures load bearing capacity while reducing weight significantly, making it an ideal core material choice for a wide range of sandwich composite panels.
Product Details
Structure：
hexagonal honeycomb structural
Product Advantages:
Light weight and high strength: honeycomb structure provides excellent compressive and flexural properties while maintaining low density.
Customizable dimensions: honeycomb edge length, thickness, and aluminum foil specifications can be flexibly configured according to demand.
Flame-retardant and environmentally friendly: the all-aluminum material is non-combustible and does not emit harmful gases, in line with green building material standards.
Structural stability: excellent dimensional stability and flatness, suitable for large-area composite.
Good easy processing: it can be compounded with many kinds of panels and is suitable for cold and hot pressing, gluing and other processes.
Specifications:
Item | Parameter Range |
Honeycomb Edge Length | 3 mm ~ 10 mm (commonly used: 6 mm, 8 mm) |
Aluminum Foil Thickness | 0.04 mm ~ 0.08 mm |
Core Density | 20 ~ 60 kg/m³ (customized according to specifications) |
Core Thickness | 3 mm ~ 100 mm (commonly used: 10 mm ~ 25 mm) |
Surface Finish | Untreated / Rustproof Coating / Degreasing, etc. |
Condition | porous, drawn, undrawn, block, slice, etc. |
Applications:
Aluminum honeycomb panels, stone composite panels, ceramic composite panels and other sandwich materials.
Curtain walls and interior systems
Lightweight structural components for rail transportation and ships
Wind power generation, purification equipment, machinery buffer support
Aviation, military industry, exhibition structure and other high-performance demand fields.
🔧 Processing & Support
✔ Custom veneer species, grain orientation, and finish
✔ Optional edge profiles, slotting, grooving, and curved shapes
✔ Installation accessories, aluminum frames, support drawings
✔ Sample service, small-batch trial orders, and bulk project supply
✔Delivery method: wooden frame packaging, direct logistics
✔Supporting services: provide CAD in-depth design, construction guidance, sample delivery
FAQ
Q: Are you a factory or a trading company?
A: We are a factory focusing on composite materials research & development, production and sales. The factory is located in Foshan. You are welcome to visit our factory at any time.
Q: What's the lead time for orders?
A: Standard models ship in 7-10 days; customized units require 15-20 days.
Q:What are the common specifications of your aluminum honeycomb panels? Can they be customized?
A:Our standard panel thicknesses include 7mm,9mm,10mm, 15mm, and 20mm, with regular sizes like 1220x2440mm. Customization is available for dimensions, surface materials (aluminum, PVDF, stainless steel, etc.), colors, and thickness according to your project needs.
Q:What are the main applications of aluminum honeycomb panels?
A:Aluminum honeycomb panels are widely used in building curtain walls, interior wall cladding, ceilings, ship interiors, rail transit, furniture panels, and display cabinets. They offer advantages such as lightweight, high strength, fire resistance, sound insulation, and thermal insulation.
Q:What is your Minimum Order Quantity (MOQ)? Do you offer samples?
A:The MOQ for standard products is 200 square meters. We can provide small samples for quality inspection. Sample costs and shipping fees are negotiable depending on the order.
Q:Do you offer OEM or ODM services?
A:Yes, we provide full OEM/ODM support. With our complete design, fabrication, and quality control systems, we can manufacture according to your drawings, specifications, or branding requirements.
Why_choose
Opt for genuine wood surfaces, exceptional strength, and eco-friendliness. Bring authenticity into your next project. Contact us today.
