FRP Fiberglass GRP Laminated XPS Sandwich Panel for Dry Truck Box and RV Box and RV Floor Panels OEM/ODM

Description

FRP is fiberglass reinforced plastic which is a high strength, durable and chemical resistant material. And the FRP surface can be gel coated surface or rough surface without gel coat. While the honeycomb core can be PP, PU, XPS, EPS, Plywood, etc honeycomb core. And FRP honeycomb panel is used for vast applications, mainly for dry van truck body, building partition walls and substrate panel to glue stone or porcelain tiles etc.

Share as:

REQUEST A QUOTE

Product Details

Panel Structure：

1. Resorcinol gel-coat (any color by RAL NO.)

2. Alkali-free glass fiber

3. Food grade high quality unsaturated polyester resin.

4. aluminium honeycomb core or PP, PU, XPS, EPS, Plywood honeycomb core

Product Advantages:

1.Light-weight &high-intensity

2. Fire resistant & insulation

3. Anti-impact &scratch

4. Corrosion resistant

5. easy to clean & install

6. Anti-mildew, mould, moisture, resistant

7. Resilient to weathering and hail

8. Excellent thermal characteristics

Specifications:

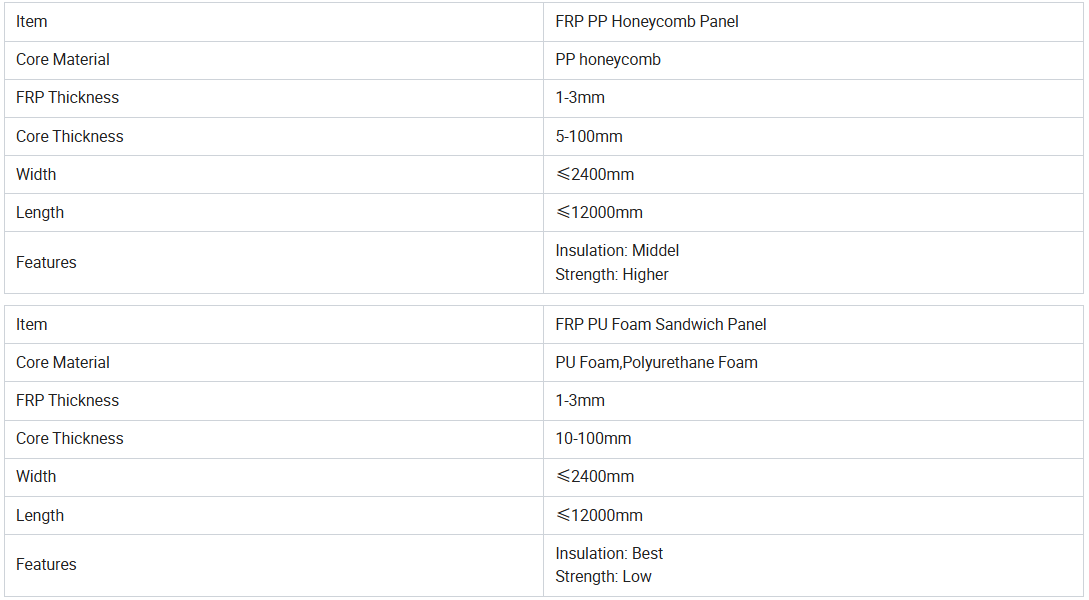

Item	FRP PP Honeycomb Panel
Core Material	PP honeycomb
FRP Thickness	1-3mm
Core Thickness	5-100mm
Width	≤2400mm
Length	≤12000mm
Features	Insulation: Middel Strength: Higher

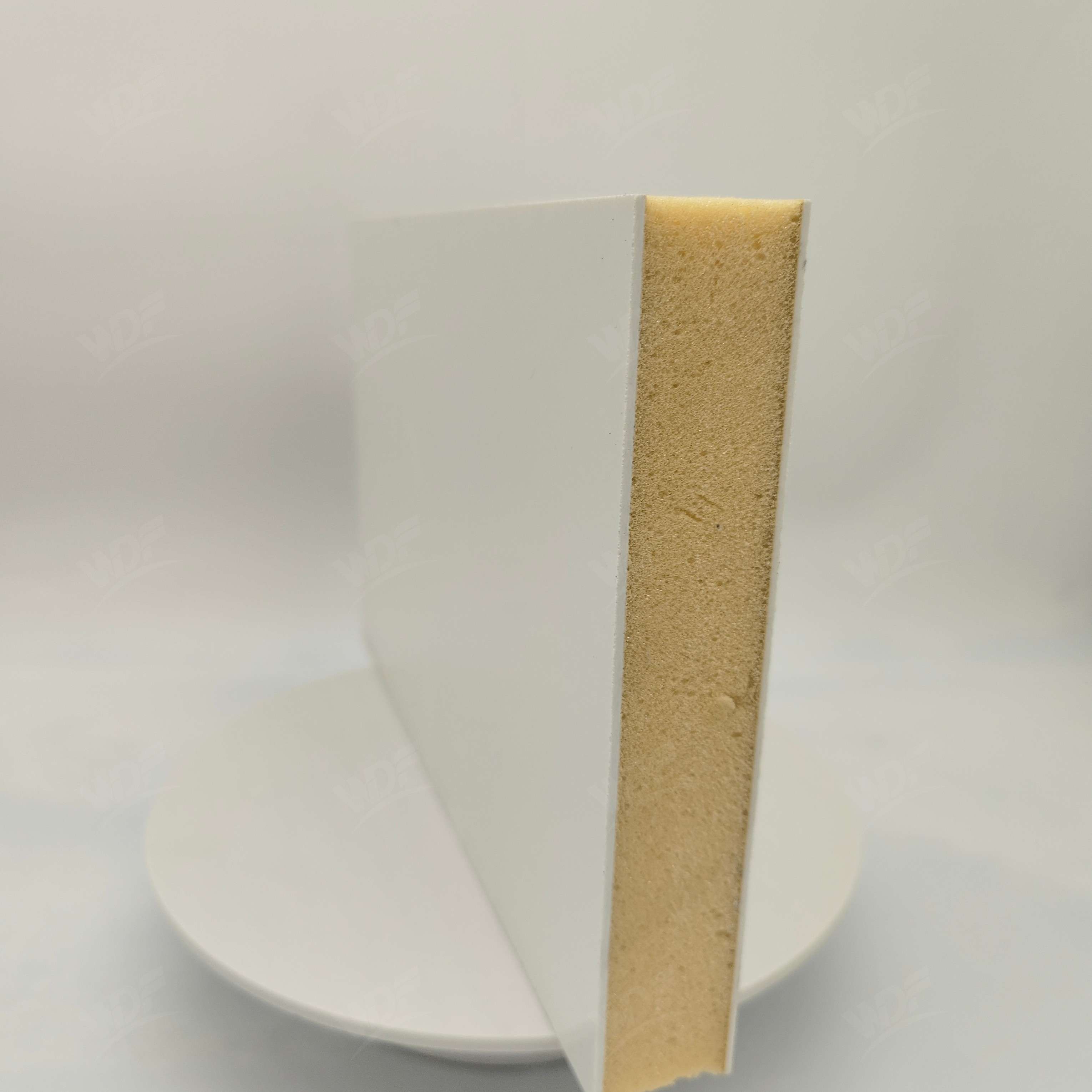

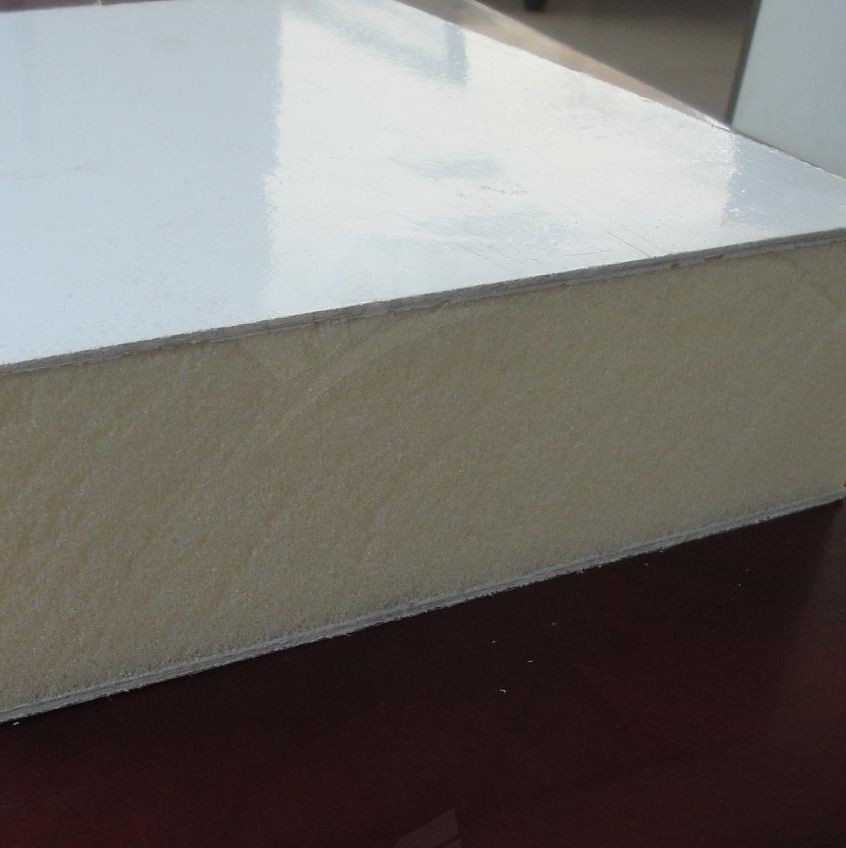

Item	FRP PU Foam Sandwich Panel
Core Material	PU Foam,Polyurethane Foam
FRP Thickness	1-3mm
Core Thickness	10-100mm
Width	≤2400mm
Length	≤12000mm
Features	Insulation: Best Strength: Low

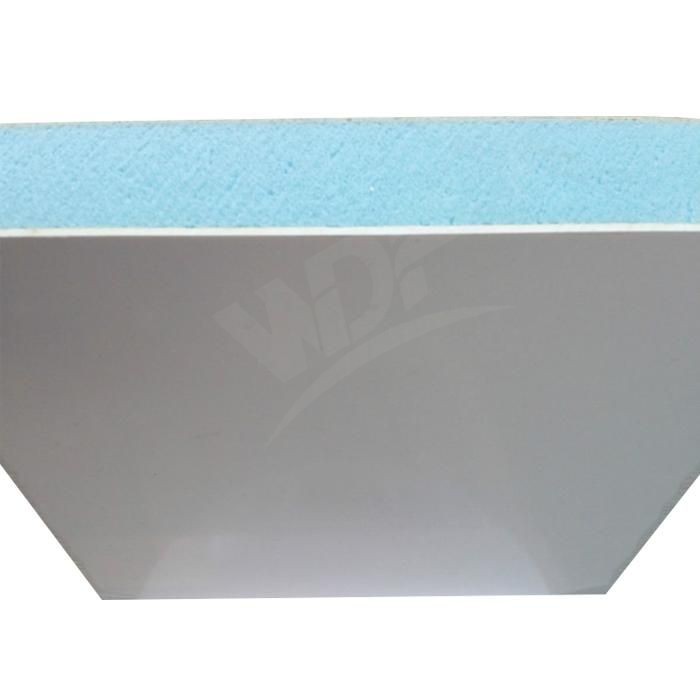

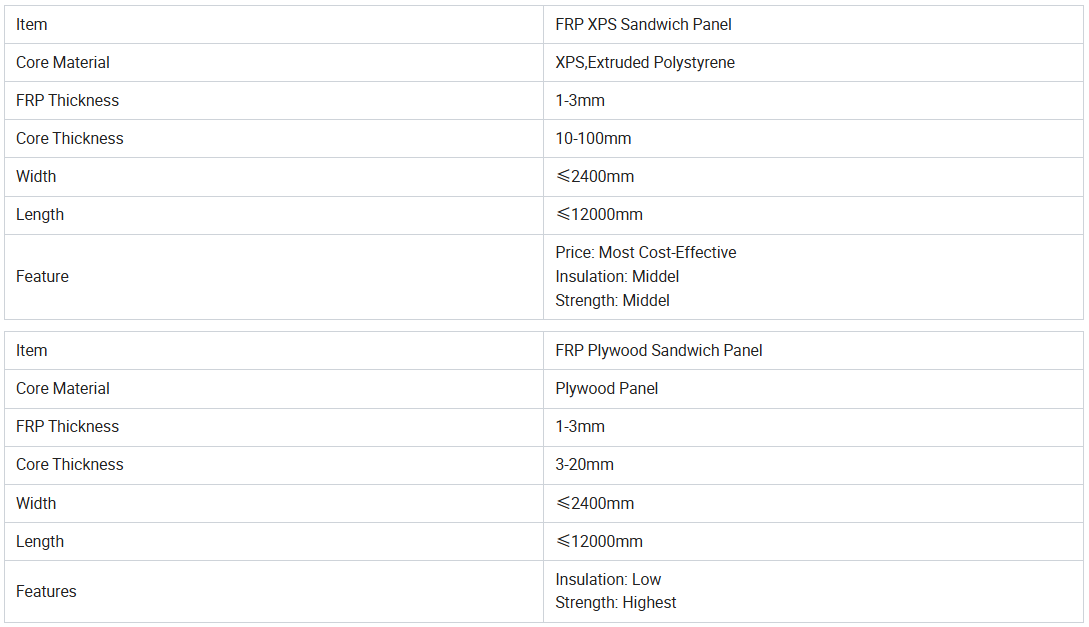

Item	FRP XPS Sandwich Panel
Core Material	XPS,Extruded Polystyrene
FRP Thickness	1-3mm
Core Thickness	10-100mm
Width	≤2400mm
Length	≤12000mm
Feature	Price: Most Cost-Effective Insulation: Middel Strength: Middel

Item	FRP Plywood Sandwich Panel
Core Material	Plywood Panel
FRP Thickness	1-3mm
Core Thickness	3-20mm
Width	≤2400mm
Length	≤12000mm
Features	Insulation: Low Strength: Highest

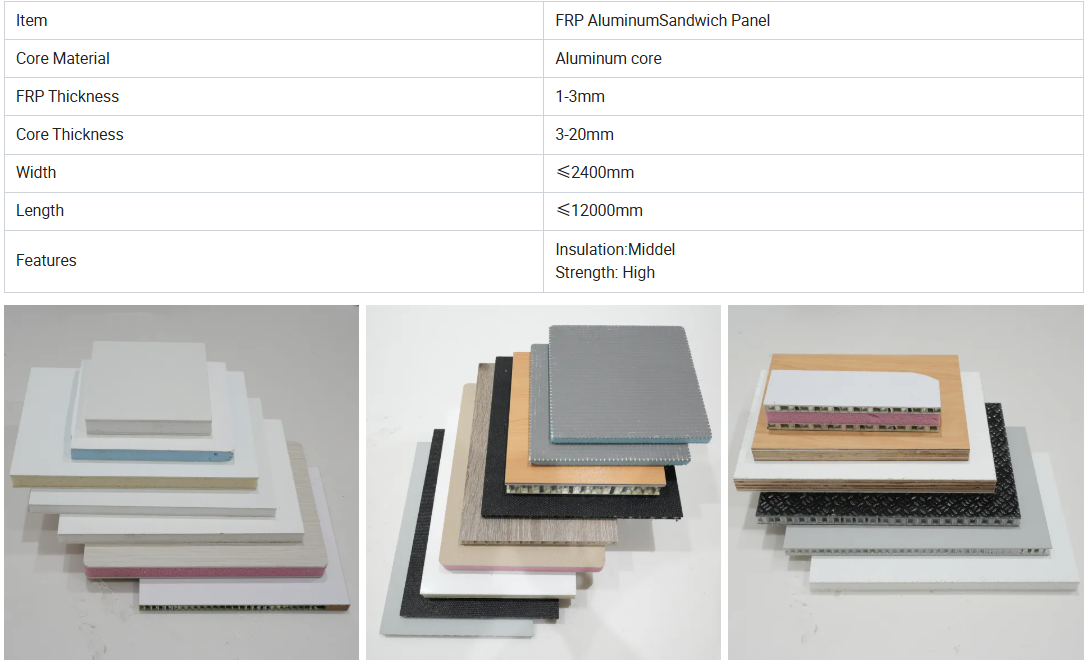

Item	FRP Aluminum Sandwich Panel
Core Material	Aluminum core
FRP Thickness	1-3mm
Core Thickness	3-20mm
Width	≤2400mm
Length	≤12000mm
Features	Insulation:Middel Strength: High

Applications:

1. Billboard/ Boat building
2. Indoor Partition /Product Showcase/ Advertising identification panels
3. Prefabricated houses/ dog kennels
4. Caravan industry/ Vehicle construction/container house
5. Building industry/ Airline industry

🔧 Processing & Support

✔ Custom veneer species, grain orientation, and finish
✔ Optional edge profiles, slotting, grooving, and curved shapes
✔ Installation accessories, aluminum frames, support drawings
✔ Sample service, small-batch trial orders, and bulk project supply

FAQ

Q: Are you a factory or a trading company?
A: We are a factory focusing on composite materials research & development, production and sales. The factory is located in Foshan. You are welcome to visit our factory at any time.

Q: What's the lead time for orders?
A: Standard models ship in 7-10 days; customized units require 15-20 days.

Q:What are the common specifications of your aluminum honeycomb panels? Can they be customized?
A:Our standard panel thicknesses include 7mm,9mm,10mm, 15mm, and 20mm, with regular sizes like 1220x2440mm. Customization is available for dimensions, surface materials (aluminum, PVDF, stainless steel, etc.), colors, and thickness according to your project needs.

Q:What are the main applications of aluminum honeycomb panels?
A:Aluminum honeycomb panels are widely used in building curtain walls, interior wall cladding, ceilings, ship interiors, rail transit, furniture panels, and display cabinets. They offer advantages such as lightweight, high strength, fire resistance, sound insulation, and thermal insulation.

Q:What is your Minimum Order Quantity (MOQ)? Do you offer samples?
A:The MOQ for standard products is 200 square meters. We can provide small samples for quality inspection. Sample costs and shipping fees are negotiable depending on the order.

Q:Do you offer OEM or ODM services?
A:Yes, we provide full OEM/ODM support. With our complete design, fabrication, and quality control systems, we can manufacture according to your drawings, specifications, or branding requirements.
