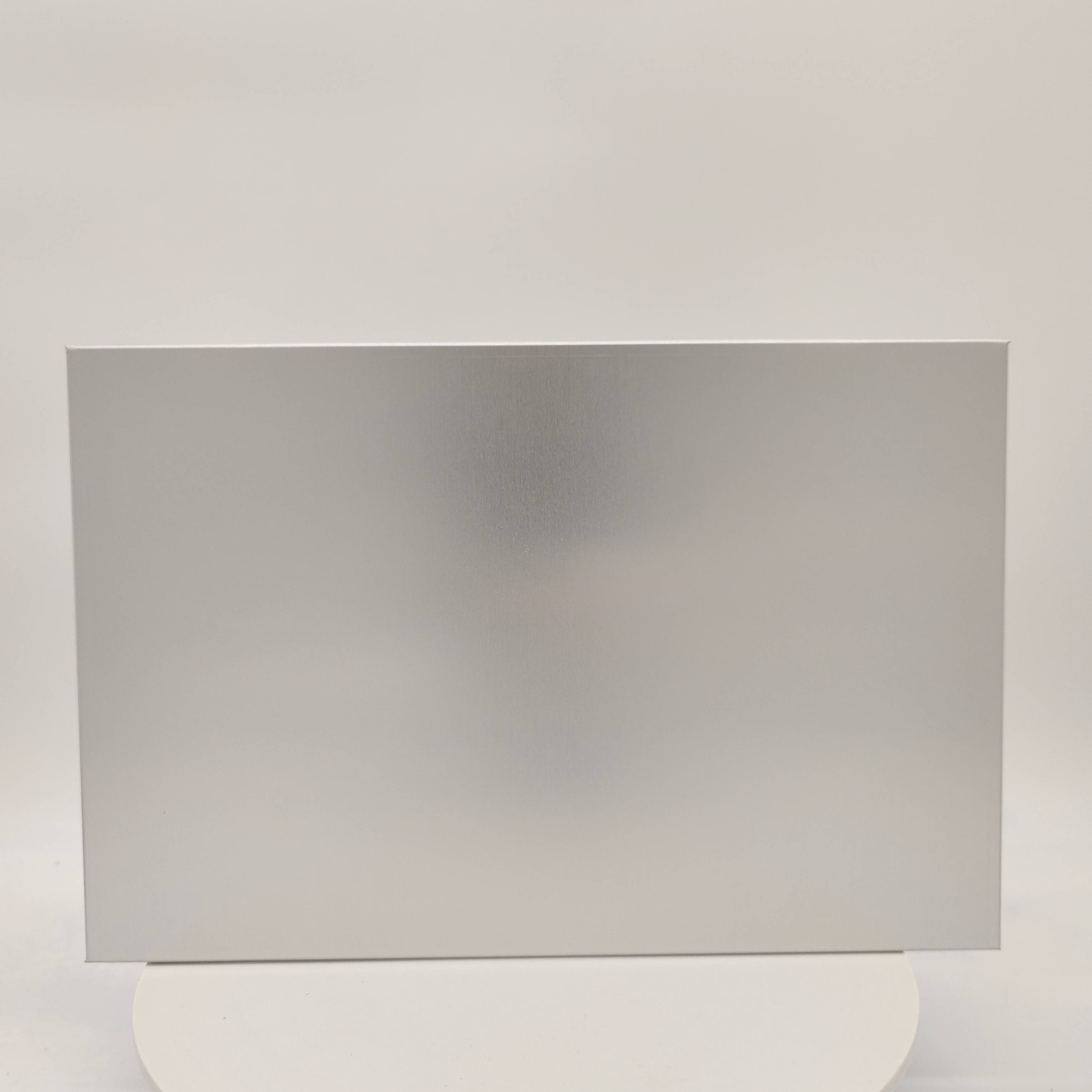

Mill finish aluminum honeycomb panel 01
Description
Mill finished aluminum honeycomb panel is of the original finish of aluminum.In most cases,It will be further processed and laminated with different materials as composites to achieve customer's design.Due to its low weight and high strength,mill finished aluminum honeycomb panels are usually manufactured as asubstrate panels to provide ful size support for light weight stone panel,terrazzo tile,thin porcelain,Formica HPL,stainless steel,enamel panel and for other thin but flexible material.
Product Details

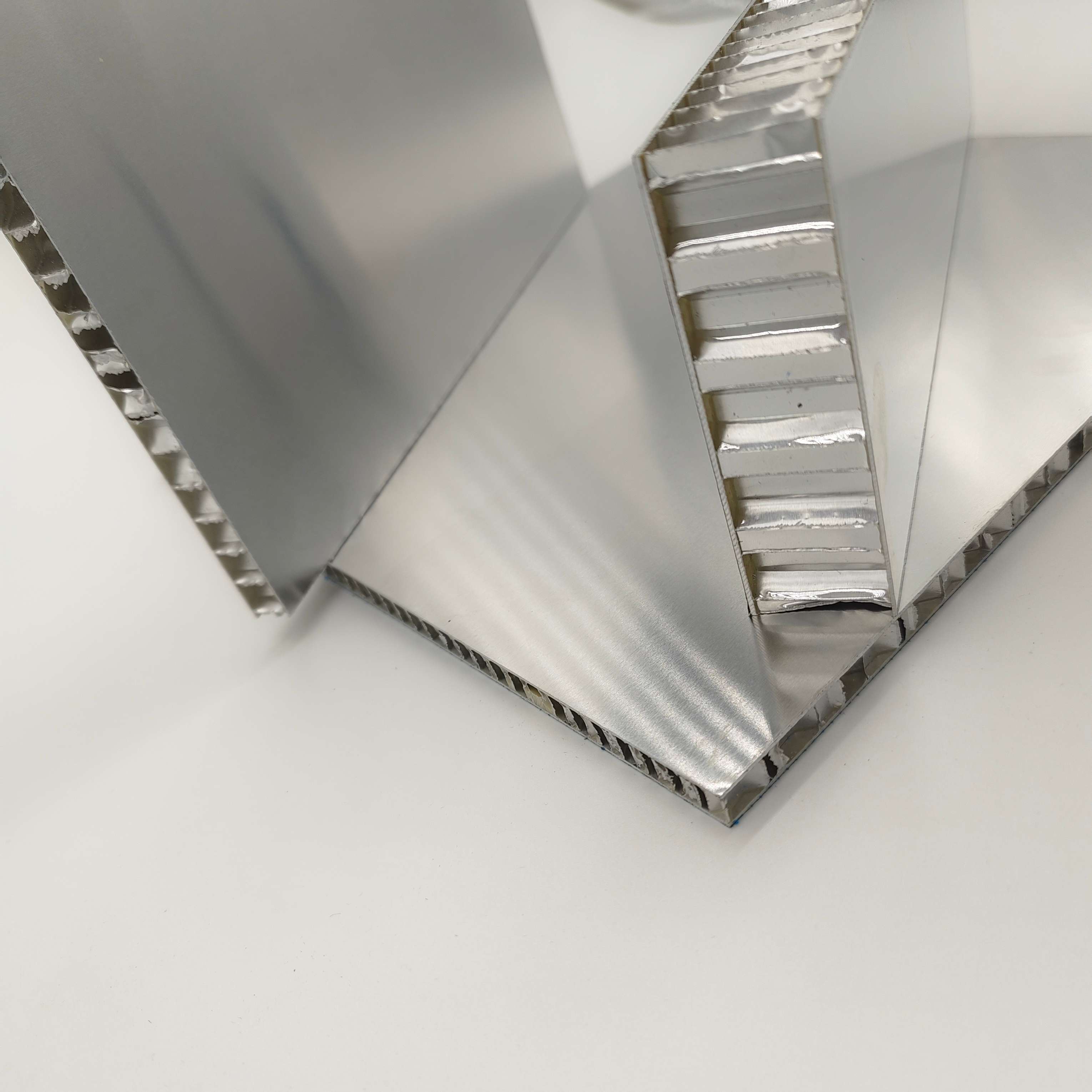

Structure
Surface LayerPanel material: aluminum plate (commonly 0.3mm ~ 2mm thick)
Core Material: Aluminum honeycomb core (hexagonal structure)
Backboard material: aluminum plate
Bonding technology: aviation-grade adhesive, hot pressing composite technology
Key Features:
Lightweight and high strength: The honeycomb structure makes the weight of the plate only one-third of the solid aluminum plate of the same thickness.
Fireproof and moisture-proof: All-aluminum material, non-flammable, moisture-proof, corrosion-resistant, suitable for various complex environments.
Sound insulation and heat insulation: The hollow structure greatly reduces heat conduction and noise transmission.
Smooth surface: Strong anti-deformation ability, suitable for large-area curtain walls and interior decoration.
Environmentally friendly and healthy: No formaldehyde release, green and environmentally friendly materials.
High cost performance: Both structural strength and decorativeness, easy installation, and cost saving.
Customizable: size, and surface material can be customized as needed.
Technical Specifications:
Item | Parameter Description |
Product Name | All-aluminum honeycomb panel |
Regular size | 1220×2440mm、1200×2800mm (customization supported) |
Thickness range | 7mm ~ 30mm |
Panel thickness | 0.7mm ~ 2mm aluminum plate |
Honeycomb core specifications | Side length 3mm~10mm |
Aluminum foil thickness | 0.035mm ~ 0.1mm |
Panel material | 3003/5052 aluminum alloy |
Fireproof grade | A2/B1 (according to GB8624 standard) |
Application
Equipment Enclosures
Transport Interiors
Temporary Structures & Exhibits
Marine Partitions & Interior Panels
Base Panels for Decorative Cladding
Air Duct Panels
Cleanroom Panels
Installation method
Aluminum honeycomb panels are suitable for installation in dry hanging systems and exposed/dark keel structures. Supporting aluminum alloy hangers, pressure strips, sealants and other auxiliary materials are provided. It can also be installed by leveling the steel structure and fixing the corner code; the third method is to directly glue the wall after leveling.
Support professional installation guidance and drawing docking, engineering customers please contact customer service for docking solutions.
After Sales Service
Minimum order quantity: calculated according to the size of the board (usually ≥200 square meter)
Delivery period: 7-10 days for regular models, 15-20 days for customized models
Delivery method: wooden frame packaging, direct logistics
Supporting services: provide CAD in-depth design, construction guidance, sample delivery
Contact us for product catalogs, samples, or personalized pricing. We are your trusted composite panel supplier for global projects!
FAQ
Q: What's the lead time for orders?
A: Standard models ship in 7-10 days; customized units require 15-20 days.
Q:What are the common specifications of your aluminum honeycomb panels? Can they be customized?
A:Our standard panel thicknesses include 7mm,9mm,10mm, 15mm, and 20mm, with regular sizes like 1220x2440mm. Customization is available for dimensions, surface materials (aluminum, PVDF, stainless steel, etc.), colors, and thickness according to your project needs.
Q:What are the main applications of aluminum honeycomb panels?
A:Aluminum honeycomb panels are widely used in building curtain walls, interior wall cladding, ceilings, ship interiors, rail transit, furniture panels, and display cabinets. They offer advantages such as lightweight, high strength, fire resistance, sound insulation, and thermal insulation.
Q:What is your Minimum Order Quantity (MOQ)? Do you offer samples?
A:The MOQ for standard products is 200 square meters. We can provide small samples for quality inspection. Sample costs and shipping fees are negotiable depending on the order.
Q:Do you offer OEM or ODM services?
A:Yes, we provide full OEM/ODM support. With our complete design, fabrication, and quality control systems, we can manufacture according to your drawings, specifications, or branding requirements.
